Welcome to Ctrl-Platform

Congratulations on your new Ctrl-Platform

Follow the steps below to install your hardware and complete setup.

Step 1

Install Ctrl-Bar

Mount Ctrl-Bar below your screen and connect the USB cable in the glovebox.

Step 2

Install Ctrl-Bridge

Select the harness location that matches your vehicle installation.

Front Harness
Rear Harness
Step 3

Install Ctrl-Stripe

Select your Tesla model version to open the correct installation guide.

Step 4

Download the Ctrl App

Install the Ctrl App to connect your vehicle, customise controls and configure automations.

Download app
Want the detail? The user manual covers every function, button combination and setting. Download user manual (PDF)

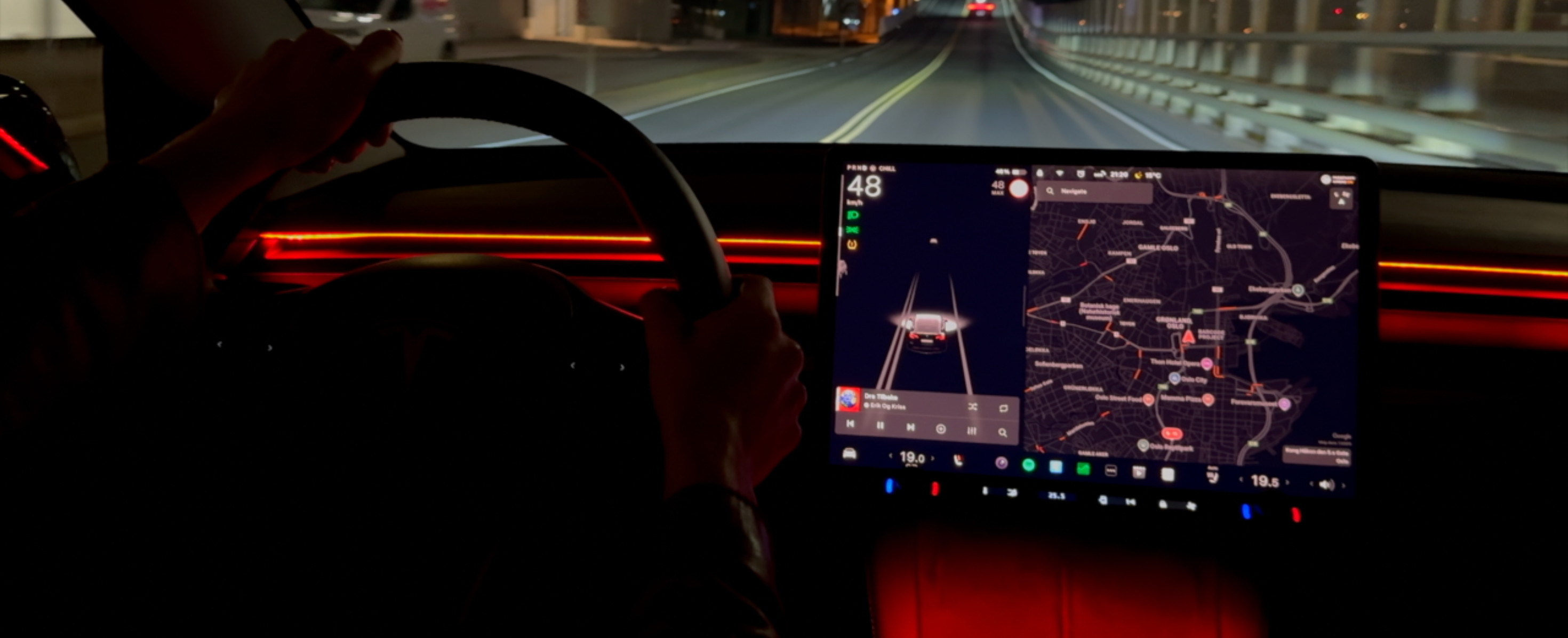

Ctrl-Stripe · Pre refresh

Install Ctrl-Stripe

Route the LED strip cable through the glovebox side and connect it to Ctrl-Bar.

Right-side glovebox trim piece
Remove the right-side trim piece next to the glovebox.
  1. 1
    Position the LED strip Apply the adhesive so the cable exits toward the glovebox side, with the lighting side facing you.
  2. 2
    Remove the trim Detach the right-side trim piece next to the glovebox, as shown in the image.
  3. 3
    Feed the cable Route the LED strip cable through the opening and into the glovebox.
  4. 4
    Connect to Ctrl-Bar Guide the cable to the Ctrl-Bar LED Accessory Port and plug it in.
